Old radios, like the E.F. Johnson Messenger 1,2, or 223 came without a grounded chassis (3 prong cord). The chassis can become live, and it had a/c floating on the chassis already. I observed sparks when I put my coax to my meter's chassis, also I was feeling a "bite" from the chassis!

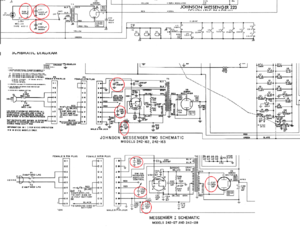

Here are the schematics for all 3 models' power supply.
![Greeen3prongJohnsonPowerScheme]()
.
Here is how I currently have an E.F. Johnson Messenger 1 wired up:
![Current config.]()
.
I have already...
